Exercise Equipment Repair Parts

2" x 2" PVC External End Cap (Foot Stop) - 10 degree Offset End

2" x 2" PVC External End Cap (Foot Stop) - 10 degree Offset End
2" x 2" PVC External End Cap (Foot Stop) - 10 degree Offset End
Item# AFK-111
Regular price: $9.95
Our price: $7.00, 2/$13.50, 4/$26.00, 10/$60.00
Availability: Usually ships the next business day

Product Description

2" x 2" PVC External End Cap (Foot Stop) - 10 degree Offset End. This end cap cover fits nice and tight over any 2" x 2" square tube. All four sides have grooves. The side contacting the floor has grooves, which will aid in preventing slippage on smooth floor coverings. By installing this external cap, the hollow open end of 2" square tubing is finished off (capped off), and at the same time, a smart modernistic 10 degree offset angle end accents the base with the added value of acting as a "foot" to raise the frame off the floor 3/16" to help prevent the entire framework from rocking. Offset angle decreases chance of tripping.

Features:

  • Made of pliable (flexible) PVC
  • Fits very snug over the end of tubing and won't fall off due the non-slip internal texture
  • Dimensions: 2-7/16" High x 2-3/8" Wide x 1-13/16" Long
  • Offset angle of outer end of cap is 10 degrees
  • A tube with a 90 degree cut will install 1.280" deep into cap
  • A tube with a 10 degree cut will install a bit deeper
  • Offset Caps will give framework a polished modern stance with less chance of tripping over them

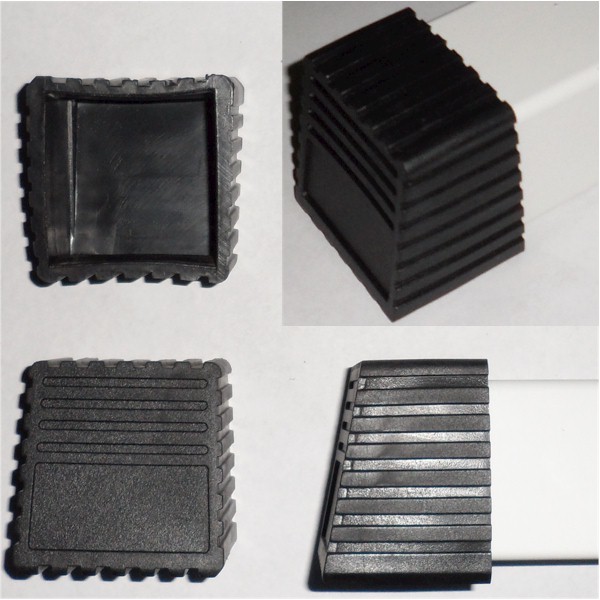

  • - Photo shows more than one for display purposes only
